Description

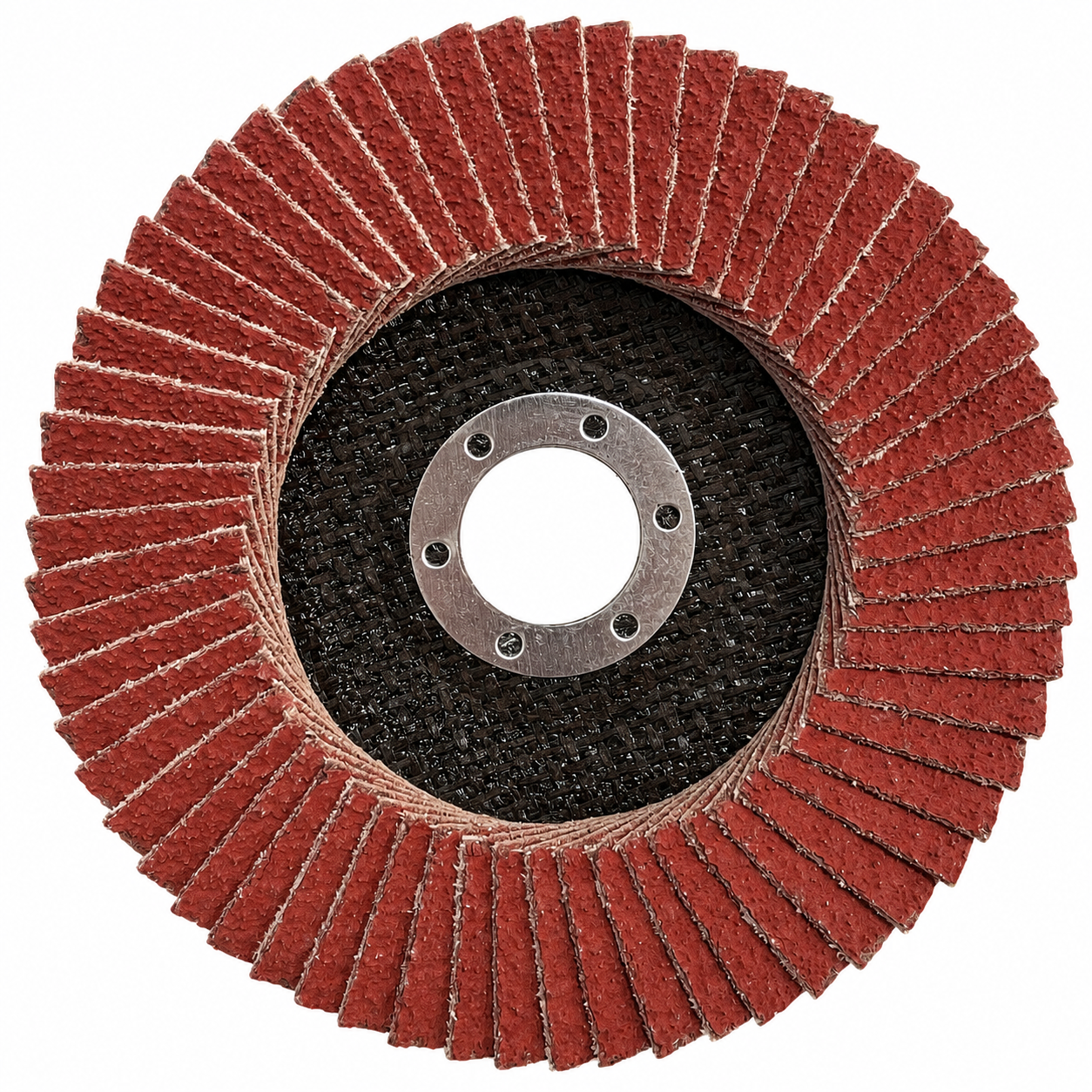

Premium quality Ceramic Flap Disc. Made with genuine VSM hi-Tech Ceramic Alunina grain for best performance on all materials and angle grinders. Fibreglass Backing. Shrink wrapped in 10s.
Recommended foruse by demanding professionals who do not compromise on quality and performance. Great solution for all metals. Recomanded for grits 24-60.
Ceramic Grain-based products are ideal solutions where an aggressive cut and high performance are required.
Such products achieve extremely high stock removal and long life due to their continuous self-sharpening
characteristics. Ceramic grains are extremely hard, making products made with it suitable for grinding
very hard and heat treated metals. Products made with Ceramic Grain are safer to use during grinding due to the
minimal amount of sparks being produced.
Suitable for the following materials:
- Carbon Steel
- Stainless steel
- Titanium
- High speed and tool steels
- Alloyed Steels
- Sheet metal
- Non-Ferrous metals
Depending on the grinding angle and surface to be ground, Flap Discs are available in two types:
Type 27 – has flat surface and can achieve maximum efficiency when applied at a work angle of 0-15 deg angle. These discs are the most suitable for grinding flat surfaces.
Type 29 – has a slightly conical surface, for grinding at 10-25 deg angle. These discs are the most suitable for grinding contoured surfaces.
Specifications
| SIZES | 4" / 4 1/2" / 5" / 6" / 7" | TYPE: | Flat (Type 27) / Conical (Type 29) |
| ABRASIVE MATERIAL: | VSM Premium Ceramic | DENSITY: | Standard |
| GRITS: | 24 / 36 / 40 / 60 / 80 / 120 | COLOUR: | Purple |
| BACKING: | Fiberglass | QUICK CHANGE | SAFE LOC / ZINC HUB |
| MAX RPM. (OD in inches - RPM) | 4" - 15,300 / 4 1/2" - 13,300 / 5" - 12,200 / 6" - 10,200 / 7"- 8,500 |
Item Numbers Packaging and Availability
For items not listed below please contact customer service. For some items minimum quantity and longer lead times apply.
| Item # | Size | Grit | Type | Pkg. Qty. | Availability |
| C5045037 | 4 1/2" x 7/8" | 36G C/A | T27F | 10 | 2-7 DAYS |
| C5045047 | 4 1/2" x 7/8" | 40G C/A | T27F | 10 | 2-7 DAYS |
| C5045067 | 4 1/2" x 7/8" | 60G C/A | T27F | 10 | 2-7 DAYS |
| C5045087 | 4 1/2" x 7/8" | 80G C/A | T27F | 10 | 2-7 DAYS |
| C5045039 | 4 1/2" x 7/8" | 36G C/A | T29F | 10 | 2-7 DAYS |
| C5045049 | 4 1/2" x 7/8" | 40G C/A | T29F | 10 | 2-7 DAYS |
| C5045069 | 4 1/2" x 7/8" | 60G C/A | T29F | 10 | 2-7 DAYS |
| C5045089 | 4 1/2" x 7/8" | 80G C/A | T29F | 10 | 2-7 DAYS |
| C5050037 | 5" x 7/8" | 36G C/A | T27F | 10 | 2-7 DAYS |
| C5050047 | 5" x 7/8" | 40G C/A | T27F | 10 | 2-7 DAYS |
| C5050067 | 5" x 7/8" | 60G C/A | T27F | 10 | 2-7 DAYS |
| C5050087 | 5" x 7/8" | 80G C/A | T27F | 10 | 2-7 DAYS |
| C5050039 | 5" x 7/8" | 36G C/A | T29F | 10 | 2-7 DAYS |
| C5050049 | 5" x 7/8" | 40G C/A | T29F | 10 | 2-7 DAYS |
| C5050069 | 5" x 7/8" | 60G C/A | T29F | 10 | 2-7 DAYS |
| C5050089 | 5" x 7/8" | 80G C/A | T29F | 10 | 2-7 DAYS |
| C5060037 | 6" x 7/8" | 36G C/A | T27F | 10 | 2-7 DAYS |
| C5060047 | 6" x 7/8" | 40G C/A | T27F | 10 | 2-7 DAYS |
| C5060067 | 6" x 7/8" | 60G C/A | T27F | 10 | 2-7 DAYS |
| C5060087 | 6" x 7/8" | 80G C/A | T27F | 10 | 2-7 DAYS |
| C5060039 | 6" x 7/8" | 36G C/A | T29F | 10 | 2-7 DAYS |
| C5060049 | 6" x 7/8" | 40G C/A | T29F | 10 | 2-7 DAYS |
| C5060069 | 6" x 7/8" | 60G C/A | T29F | 10 | 2-7 DAYS |
| C5060089 | 6" x 7/8" | 80G C/A | T29F | 10 | 2-7 DAYS |
| C5070037 | 7" x 7/8" | 36G C/A | T27F | 10 | 2-7 DAYS |
| C5070047 | 7" x 7/8" | 40G C/A | T27F | 10 | 2-7 DAYS |
| C5070067 | 7" x 7/8" | 60G C/A | T27F | 10 | 2-7 DAYS |
| C5070087 | 7" x 7/8" | 80G C/A | T27F | 10 | 2-7 DAYS |
| C5070039 | 7" x 7/8" | 36G C/A | T29F | 10 | 2-7 DAYS |
| C5070049 | 7" x 7/8" | 40G C/A | T29F | 10 | 2-7 DAYS |
| C5070069 | 7" x 7/8" | 60G C/A | T29F | 10 | 2-7 DAYS |
| C5070089 | 7" x 7/8" | 80G C/A | T29F | 10 | 2-7 DAYS |
Add SAFE LOC (Patented), Quick Change
SAFE LOC is a 5/8″-11 threaded attachment for flap discs. Available for 4 1/2″, 5″, 6″ and 7″ discs with any backing type.
For Item with SAFE LOC Quick Change add S to the end of Item with 7/8″ Arbor Hole. e.g. Item: Z5045049 with 7/8″ AH will become Z5045049S with 5/8″-11 SAFE LOC.
For Item with 5/8″-11 Zinc Hub add H to the of Item with 7/8″ Arbor Hole. e.g. Item: Z5045049 with 7/8″ AH will become Z5045049H with 5/8″-11 Zinc Hub.
