TrimZEE

Category:

Description

Premium VSM ZK7656X Zirconia Abrasive Material made with Poly-Cotton cloth for best performance on all angle grinders. Trimmable Plastic Backing for maximum abrasive usage. Shrink wrapped in 10s and packaged in white box.

Recommended for frequent use by demanding professionals who do not compromise on quality. Premium product at unbeatable value.

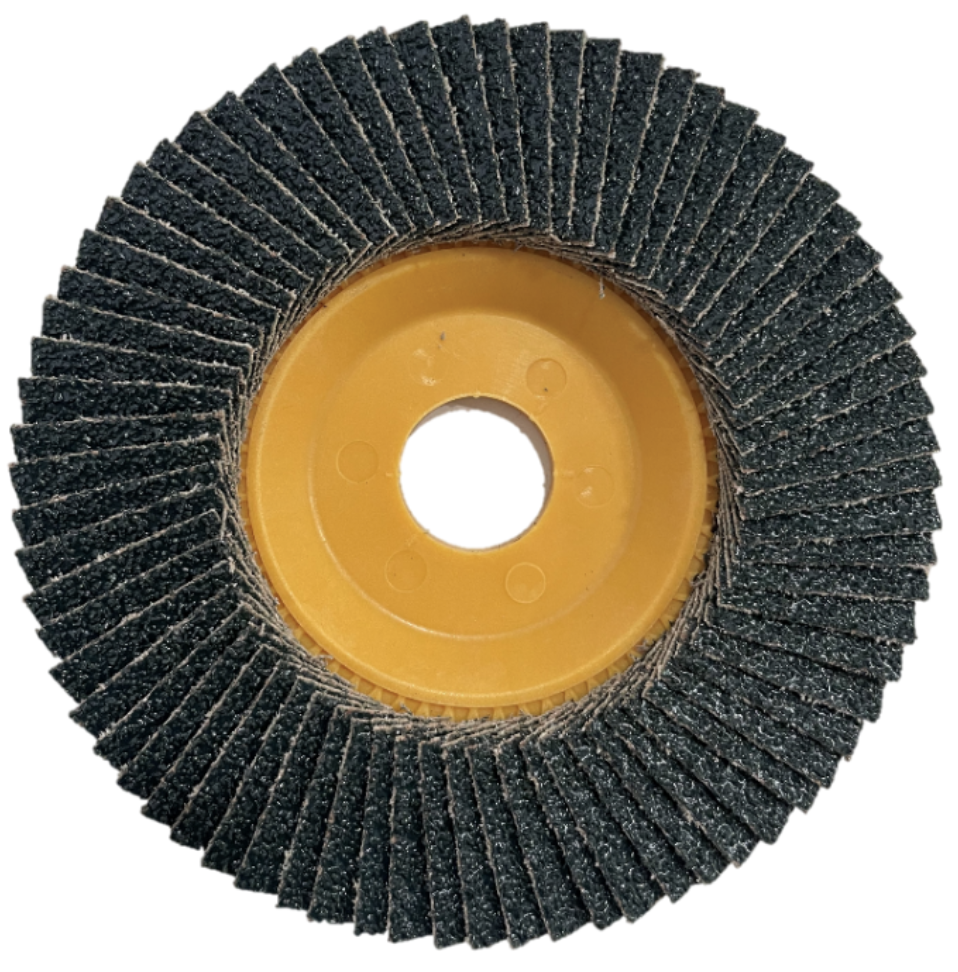

TrimZEE Flap Discs are manufactured using the highest quality Self-Sharpening Zirconia Alumina abrasive material.

Discs made with continuous self-sharpening High-Tech Zirconia Alumina grain, achieve extremely high cutting rates, long lifetimes, better surface finish, and better economy.

buyersguide_abrasivematerial

Suitable for the following materials:

  • Carbon Steel
  • Stainless steel
  • Heat treated steels
  • High speed and tool steels
  • Alloyed Steels
  • Sheet metal
  • Cast iron
  • Non-Ferrous metals

TrimZEE FD are available as

Type 27 – has flat surface and can achieve maximum efficiency when applied at a work angle of 0-15 deg angle. These discs are the most suitable for grinding flat surfaces.

t27-fd

Specifications

SIZES4 1/2" / 5" / 6"TYPE:Flat (Type 27)
ABRASIVE MATERIAL:VSM Premium ZirconiaDENSITY:Standard
AVAILABLE GRITS:24 / 36 / 40 / 60 / 80 / 120COLOUR:Blue
BACKING:Yellow Trimmable PlasticQUICK CHANGESAFE LOC / ZINC HUB
MAX RPM. (OD in inches - RPM)4 1/2" - 13,300 / 5" - 12,200 / 6" - 10,200

Item Numbers  Packaging and Availability

Item #SizeGritTypePkg. Qty.Availability
Z5T450374 1/2" x 7/8"36G Z/AT27TP102-7 DAYS
Z5T450474 1/2" x 7/8"40G Z/AT27TP10STOCK
Z5T450674 1/2" x 7/8"60G Z/AT27TP10STOCK
Z5T450874 1/2" x 7/8"80G Z/AT27TP10STOCK
Z5T451274 1/2" x 7/8"120G Z/AT27TP102-7 DAYS
Z5T500375" x 7/8"36G Z/AT27TP102-7 DAYS
Z5T500475" x 7/8"40G Z/AT27TP10STOCK
Z5T500675" x 7/8"60G Z/AT27TP10STOCK
Z5T500875" x 7/8"80G Z/AT27TP10STOCK
Z5T501275" x 7/8"120G Z/AT27TP102-7 DAYS
Z5T600376" x 7/8"36G Z/AT27TP102-7 DAYS
Z5T600476" x 7/8"40G Z/AT27TP102-7 DAYS
Z5T600676" x 7/8"60G Z/AT27TP102-7 DAYS
Z5T600876" x 7/8"80G Z/AT27TP102-7 DAYS
Z5T601276" x 7/8"120G Z/AT27TP102-7 DAYS

Add SAFE LOC (Patented), Quick Change

SAFE LOC is a 5/8″-11 threaded attachment for flap discs. Available for 4 1/2″, 5″, 6″ and 7″ discs with any backing type.

For Item with SAFE LOC Quick Change add S to the end of Item with 7/8″ Arbor Hole. e.g. Item: Z5T45047 with 7/8″ AH will become Z5T45047S with 5/8″-11 SAFE LOC.

For Item with 5/8″-11 Zinc Hub add H to the of Item with 7/8″ Arbor Hole. e.g. Item: Z5T45047 with 7/8″ AH will become Z5T45047H with 5/8″-11 Zinc Hub.
